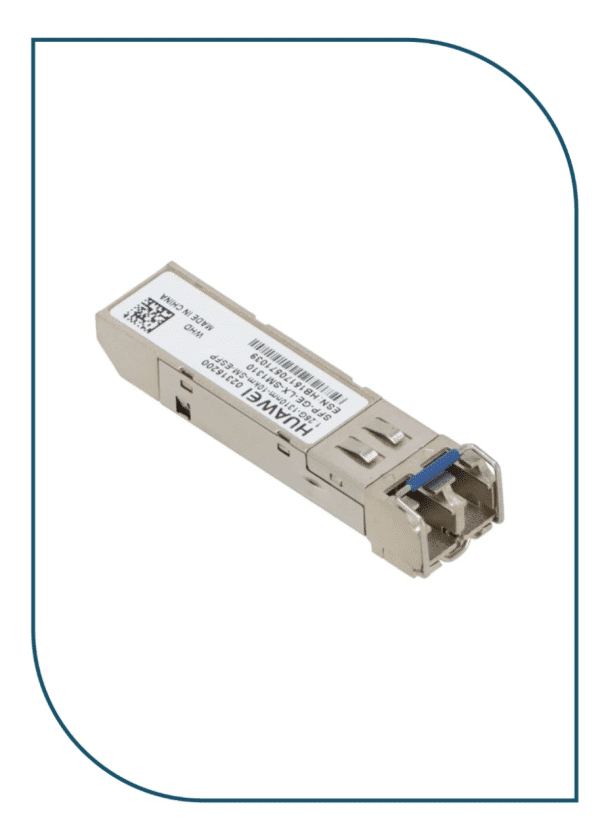

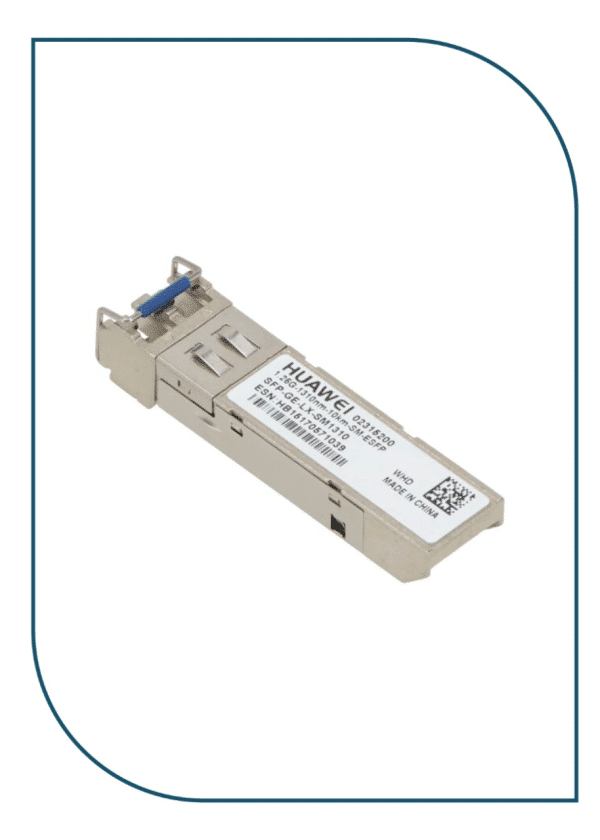

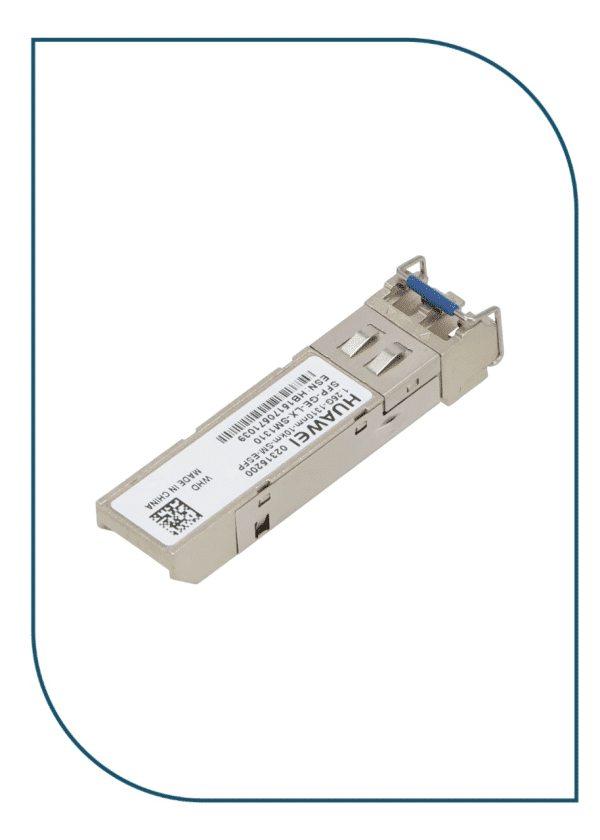

Huawei Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) (SFP-GE-LX-SM1310)
$ 93.03
Description SFP-GE-LX-SM1310 specifications : The Huawei SFP-GE-LX-SM1310 is a Gigabit Ethernet single-mode optical transceiver designed for reliable 1 Gbps data transmission over long distances. It operates at a 1310 nm wavelength and supports transmission distances of up to 10 km using single-mode fiber with an LC connector. The module is hot-pluggable, energy-efficient, and fully compatible with Huawei switches and routers, making it ideal for enterprise networks, campus backbones, and service provider environments. Item Value Basic Information Module name SFP-GE-LX-SM1310 Part Number 02315200 Model SFP-GE-LX-SM1310 Form factor eSFP Application standard/Type 1000BASE-LX10 Connector type LC/DLC Optical fiber type SMF Type of the end face of the fiber ceramic ferrule PC or UPC Working case temperature [°C (°F)] 0°C to 70°C (32°F to 158°F) DDM options Supported Transmission rate [bit/s] 1Gbit/s Target transmission distance [km] Single-mode (G.652) optical fiber (diameter: 9 μm): 10 km Transmitter Optical Characteristics Center wavelength [nm] 1310 nm Maximum Tx optical power (AVG) [dBm] -3.0 dBm Minimum Tx optical power (AVG) [dBm] -9.0 dBm Minimum extinction ratio [dB] 9 dB Receiver Optical Characteristics Rx sensitivity (OMA) [dBm] -20.0 dBm Overload power (AVG) [dBm] -3.0 dBm Show More Show Less
