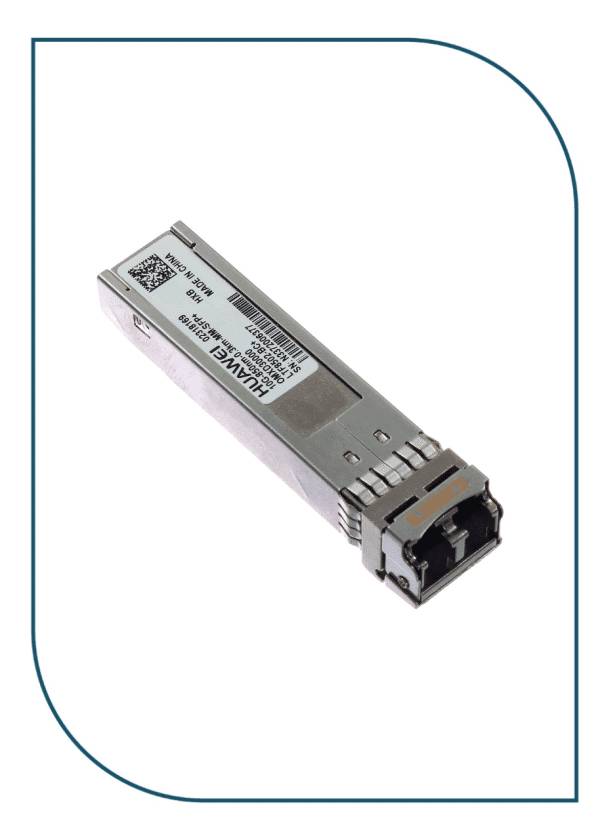

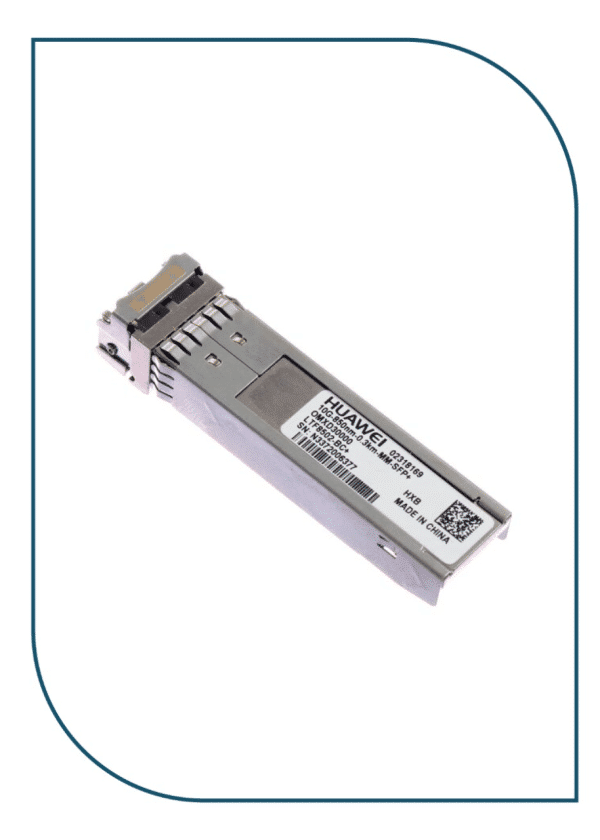

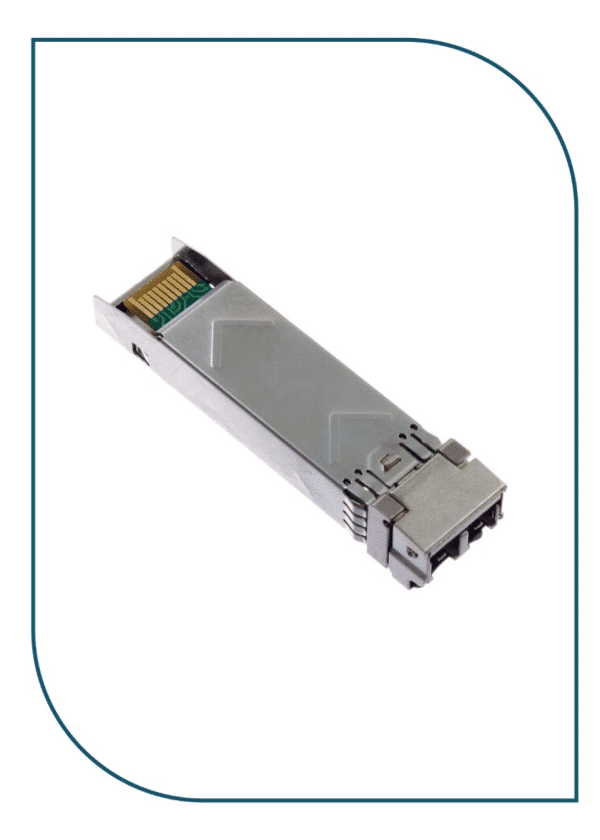

Huawei Optical Transceiver, SFP , 10G, Multi-mode Module (850nm, 0.3km, LC) (OMXD30000)

Description OMXD30000 The Huawei OMXD30000 is a 10 Gbps SFP multi-mode optical transceiver designed for high-speed data transmission over short distances. It operates at 850 nm wavelength and supports a transmission distance of up to 300 meters using multi-mode fiber (MMF) with an LC connector.This module is ideal for data centers, enterprise networks, and switch-to-switch connections, providing reliable performance, low power consumption, and full compatibility with Huawei SFP interfaces. specifications : Item Value Basic Information Module name OMXD30000 Part Number 02318169 Model OMXD30000 Form factor SFP Application standard 10GBASE-SR Connector type LC Optical fiber type MMF Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F) Digital diagnostic monitoring (DDM) Supported Transmission rate [bit/s] 10 Gbit/s Target transmission distance [km]   Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km Transmitter Optical Characteristics Center wavelength [nm] 850 nm Maximum Tx optical power [dBm] -1.0 dBm Minimum Tx optical power [dBm] -7.3 dBm Minimum extinction ratio [dB] 3.0 dB Receiver Optical Characteristics Rx sensitivity [dBm] -11.1 dBm Overload power [dBm] -1.0 dBm Show More Show Less
