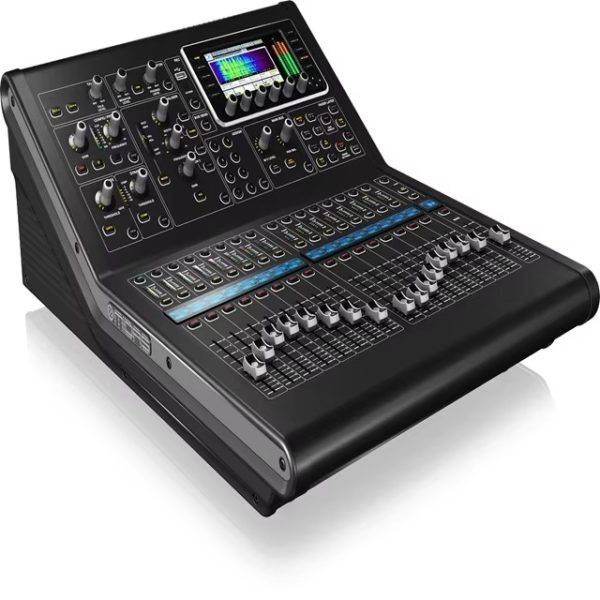

Midas M32R Live Digital Audio Console Mixer

Description Midas M32R LIVE – Digital Mixer Full Specifications �� Overview Model: Midas M32R LIVE Type: 40-input digital mixing console (rack-mountable) Application: Live performance, touring, club installs, studio recording ��️ Audio Inputs & Outputs Input Channels Max simultaneous inputs: 40 channels Mic preamps: 16 x Midas PRO mic preamps (XLR) Line inputs: 1 x Dual RCA stereo aux 6 x 1/4″ TRS balanced aux Talkback: 1 x XLR input Output Channels Main outputs: 8 x XLR balanced main/bus Monitor outputs: 2 x XLR 2 x 1/4″ TRS balanced Aux outputs: 6 x 1/4″ TRS balanced Headphone: 1 x 1/4″ TRS �� Mixing & Bus Structure Mix Buses: 25 time-aligned and phase-coherent buses DCA Groups: 8 Mute Groups: 6 Matrix Mixes: Yes (configurable) Scenes & Presets: 100 scenes 500 cues 100 snippets �� Display & Control Main Display: 5″ full-color TFT touchscreen Channel Displays: Backlit LCD per channel Motorized Faders: 17 touch-sensitive Midas PRO motorized faders (rated 1 million cycles) ��️ Signal Processing DSP Engine: 40-bit floating point processing EQ: Parametric (typically 6-band) per channel Dynamics: Compressor, gate on channels Built-in Effects: 8 stereo effects engines 16 mono effects instances Real-Time Analyzer: 100-band RTA (in many setups) �� Digital Connectivity AES50 Ports: 2 x EtherCon for SuperMAC networking (up to 96 in/96 out) ULTRANET: 1 x EtherCon for personal monitoring systems USB: USB-B: Control/interface to computer USB-A: Playback/recording/standalone use SD/SDHC Slots: Dual slots for multitrack live recording and playback (up to 32 channels WAV) Ethernet / MIDI: Ethernet and MIDI connectivity supported �� Digital Audio Sample Rate: 48 kHz (standard) Bit Depth: 24-bit AD/DA conversion Latency: Very low (<1 ms typical) ��️ Physical & Miscellaneous Form Factor: Rackmount (3 RU with brackets included) Construction: High-strength aluminium, carbon fiber, and steel chassis Power: Auto-ranging universal switch-mode supply Remote Control: Optional wireless control via Midas Apps (iOS/Android) �� Additional Features DAW Remote Control: Mackie Control / HUI emulation supported Live Recording: Independent multitrack recorder to SD cards Expandable: Supports expansion cards (ADAT, MADI, Dante) in some configurations
